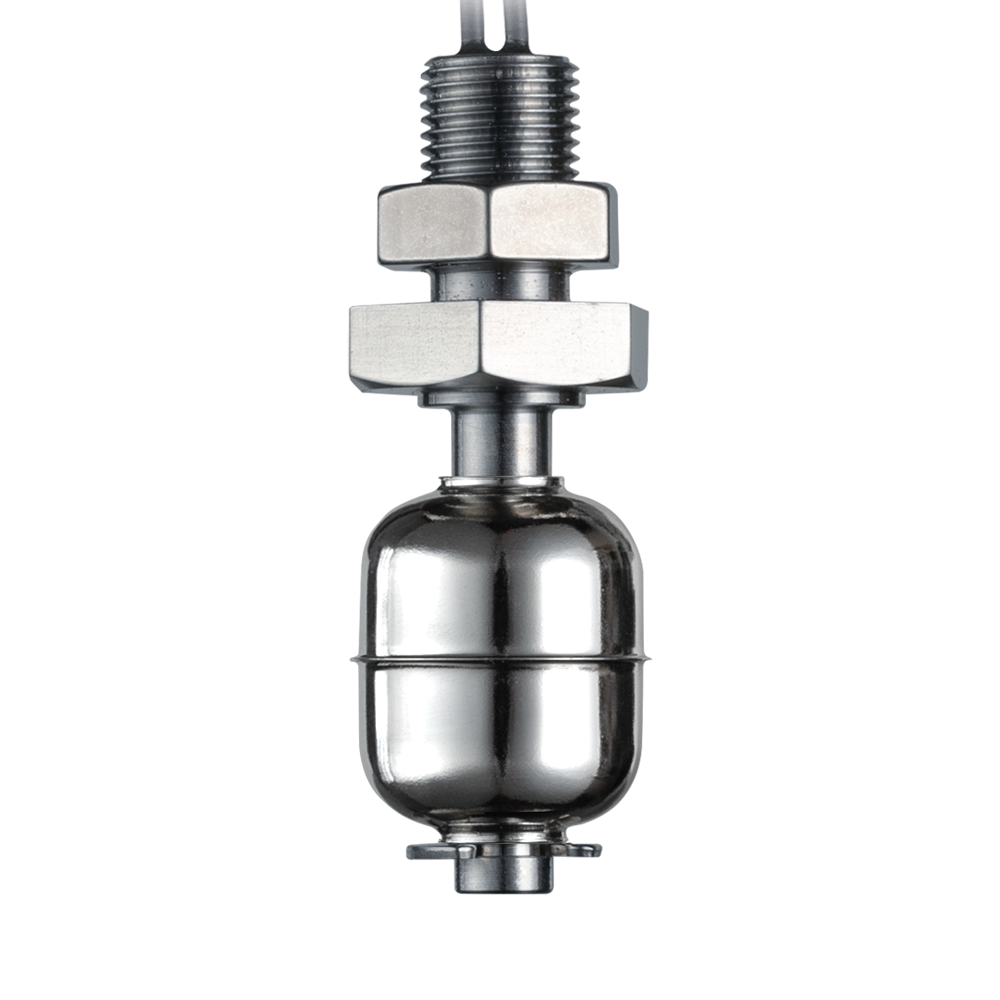

RFS off-the-shelf type / Float level switch RFS-15
- off-the-shelf type
- Metal housing
- Vertical threaded
- Small-sized
- For Water
- For Oil
- For Chemical
Vertical through-hole, Resistant to oil, up to 120 deg.
Application
- Water temperature controller
Specifications
| Model | RFS-15 | |
|---|---|---|
| Material | Stem | SUS304 |
| Float | SUS316L | |
| Stopper | SUS304 | |
| Nat | SUS304 | |
| Specs. | Temperature Range(Atm.Pressure) | -40℃〜+120℃ |
| Pressure Resistance(Room Temp.) | 1MPa | |
| Float Specific Gravity | 0.5±0.07 | |
| Electric Specs. | Max.Contact Capacity | 10W DC/AC |
| Max.Voltage | 100V DC/AC | |
| Max.Current | 0.4A DC/AC |
Explore the “RFS-15” Level Switch on the following sites by RIKO Float Technology CO., LTD. (RFT):
Dimension
