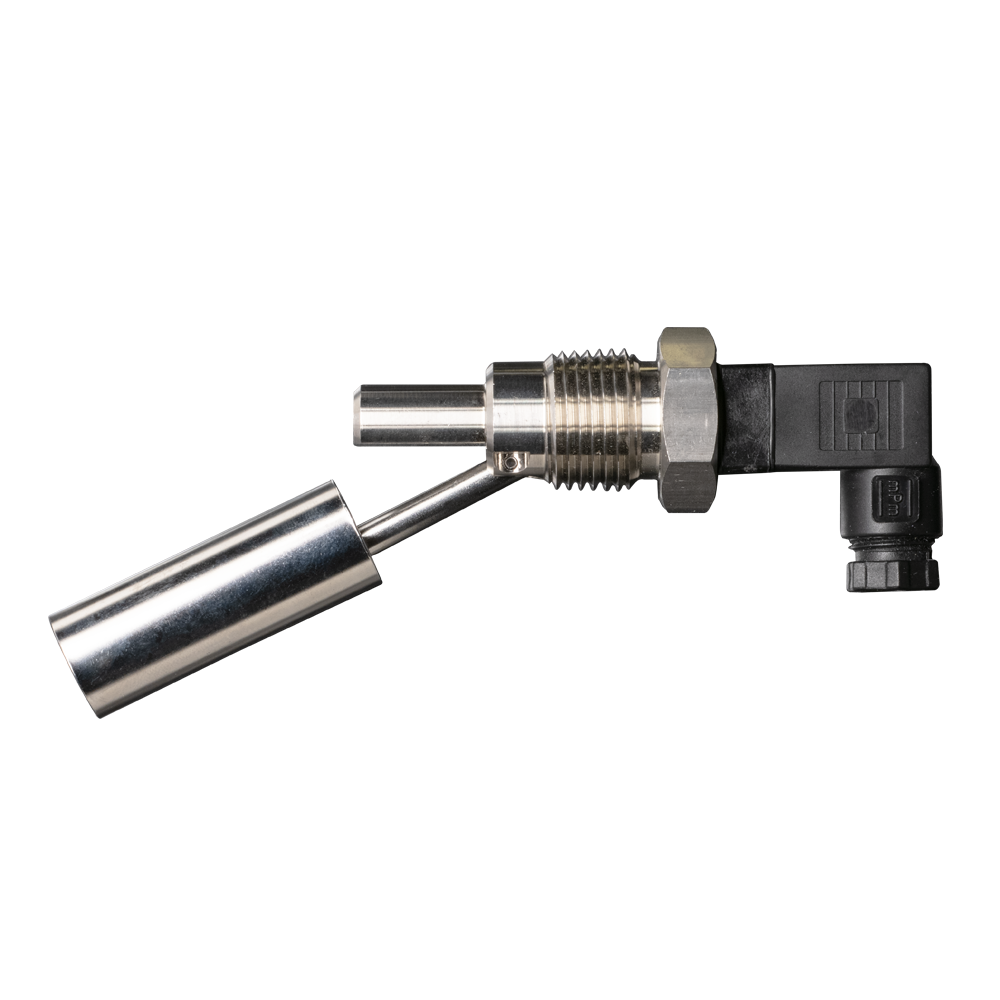

RFS off-the-shelf type / Float level switch RFS-12P
- off-the-shelf type
- Metal housing
- Side threaded
- Threaded
- For Water
- For Oil
- For Chemical
Side threaded with terminal, Resistant to oil, up to 120 deg.
Application
- Noodle boiling device
Specifications
| Model | RFS-12P | |
|---|---|---|
| Material | Stem | SUS304 |
| Float | SUS304 | |
| Stopper | SUS304 | |
| Nat | SUS304 | |
| Specs. | Temperature Range(Atm.Pressure) | -40℃〜+120℃ |
| Pressure Resistance(Room Temp.) | 0.5MPa | |
| Float Specific Gravity | 0.7±0.05 | |
| Electric Specs. | Max.Contact Capacity | 50W DC/AC |
| Max.Voltage | 300V DC/AC | |
| Max.Current | 0.5A DC/AC |
Explore the “RFS-12P” Level Switch on the following sites by RIKO Float Technology CO., LTD. (RFT):

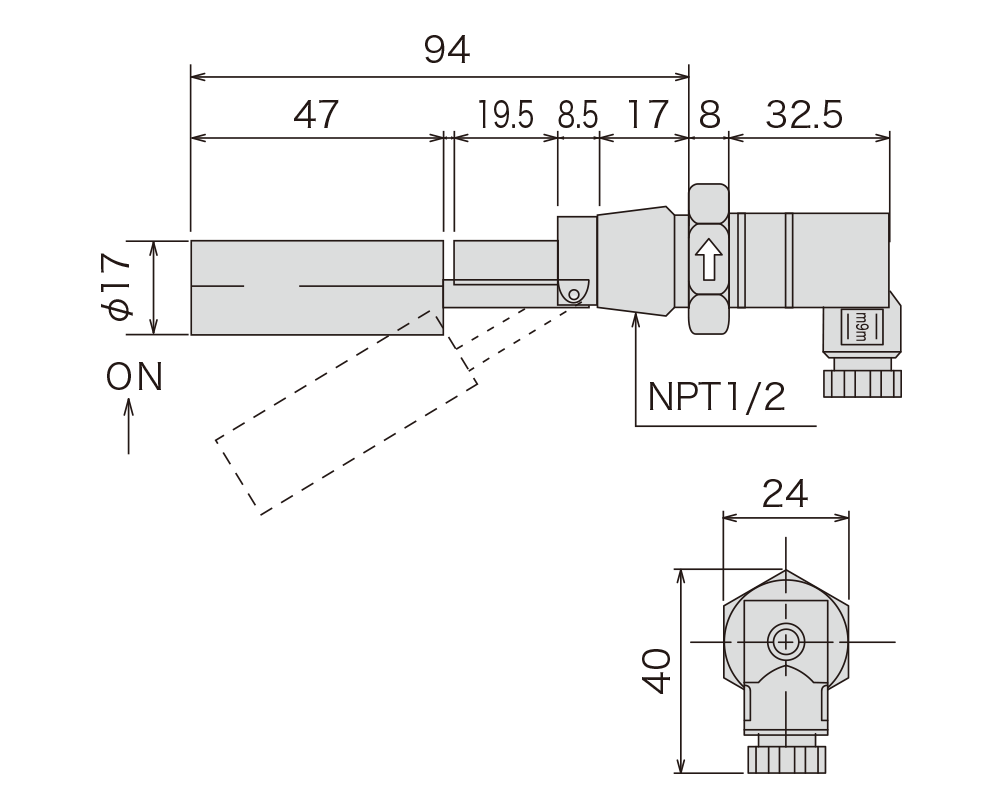

Dimension
