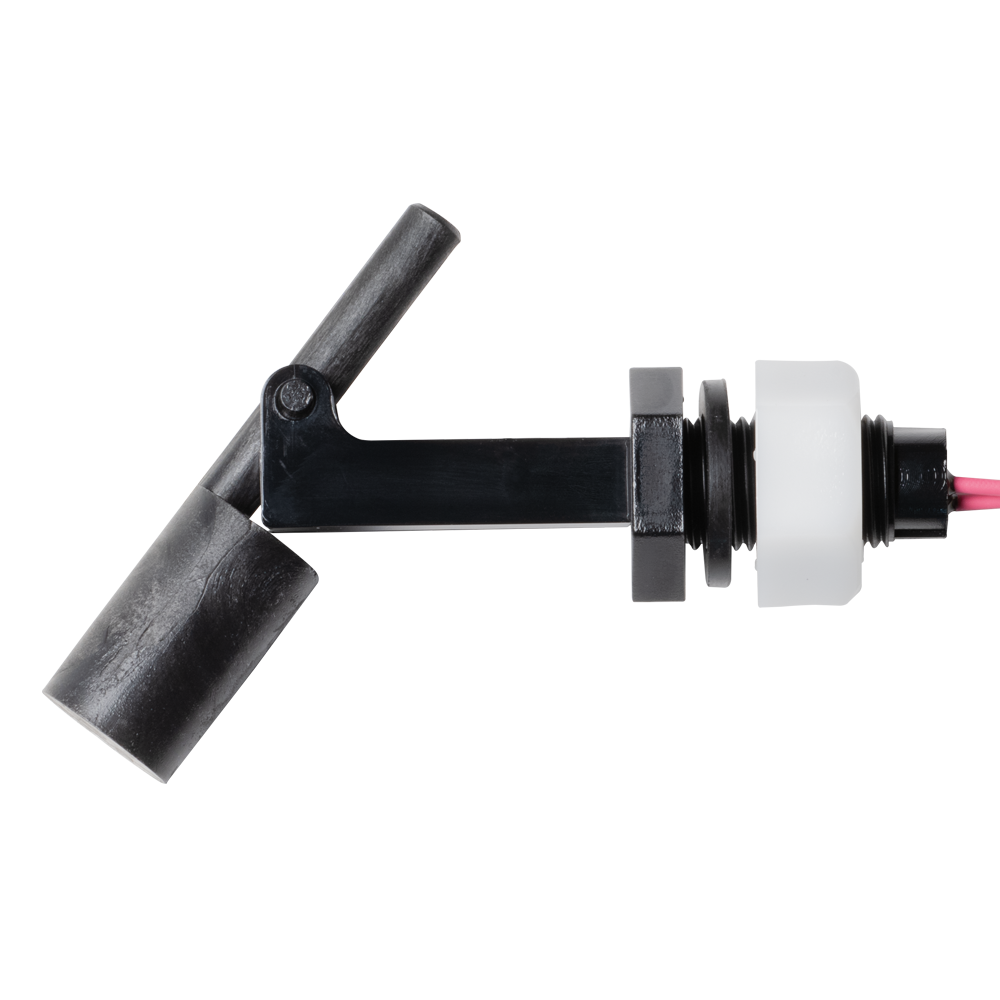

MFS off-the-shelf type / Float level switch MFS9-N2
- off-the-shelf type
- Plastic housing
- Side threaded
- For Oil
Side through-hole, up to 110 deg.
Application
- Fuel tank for construction device
Specifications
| Model | MFS9-N2 | |
|---|---|---|
| Material | Stem | 6-N |
| Float | 6-NFoamed | |
| Stopper | ー | |
| Nat | POM | |
| Specs. | Temperature Range(Atm.Pressure) | -10℃〜+110℃ |
| Pressure Resistance(Room Temp.) | 0.2MPa | |
| Float Specific Gravity | 0.7±0.05 | |
| Electric Specs. | Max.Contact Capacity | 50W DC/AC |
| Max.Voltage | 300V DC/AC | |
| Max.Current | 0.5A DC/AC |
Explore the “MFS9-N2” Level Switch on the following sites by RIKO Float Technology CO., LTD. (RFT):

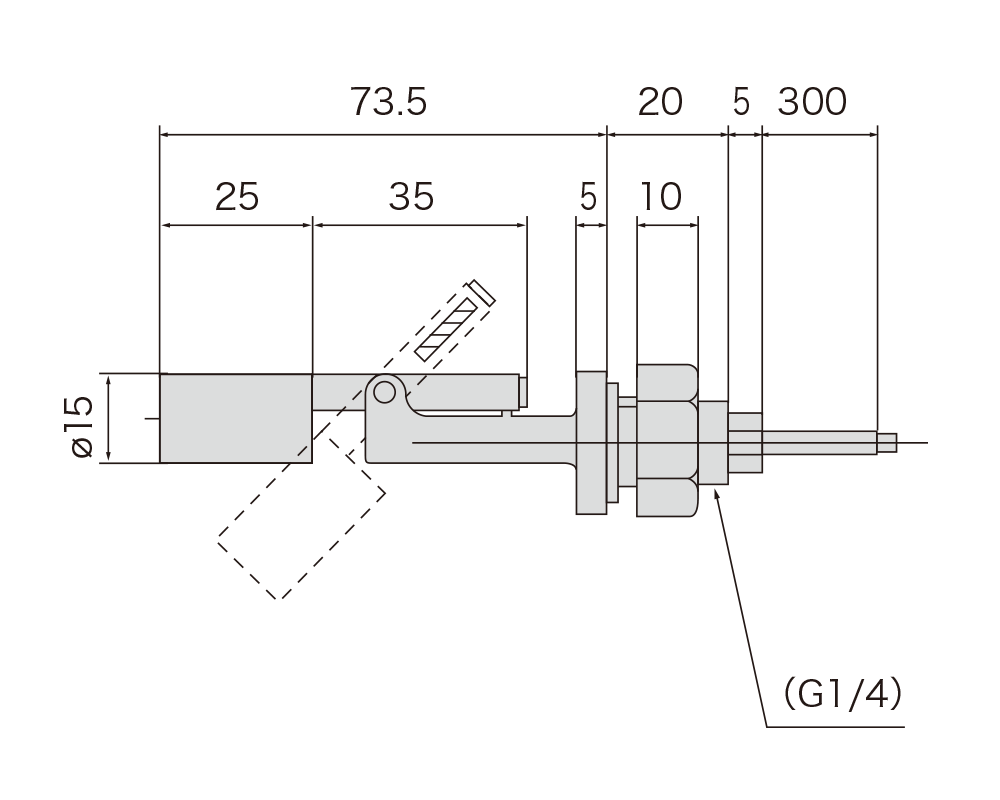

Dimension
