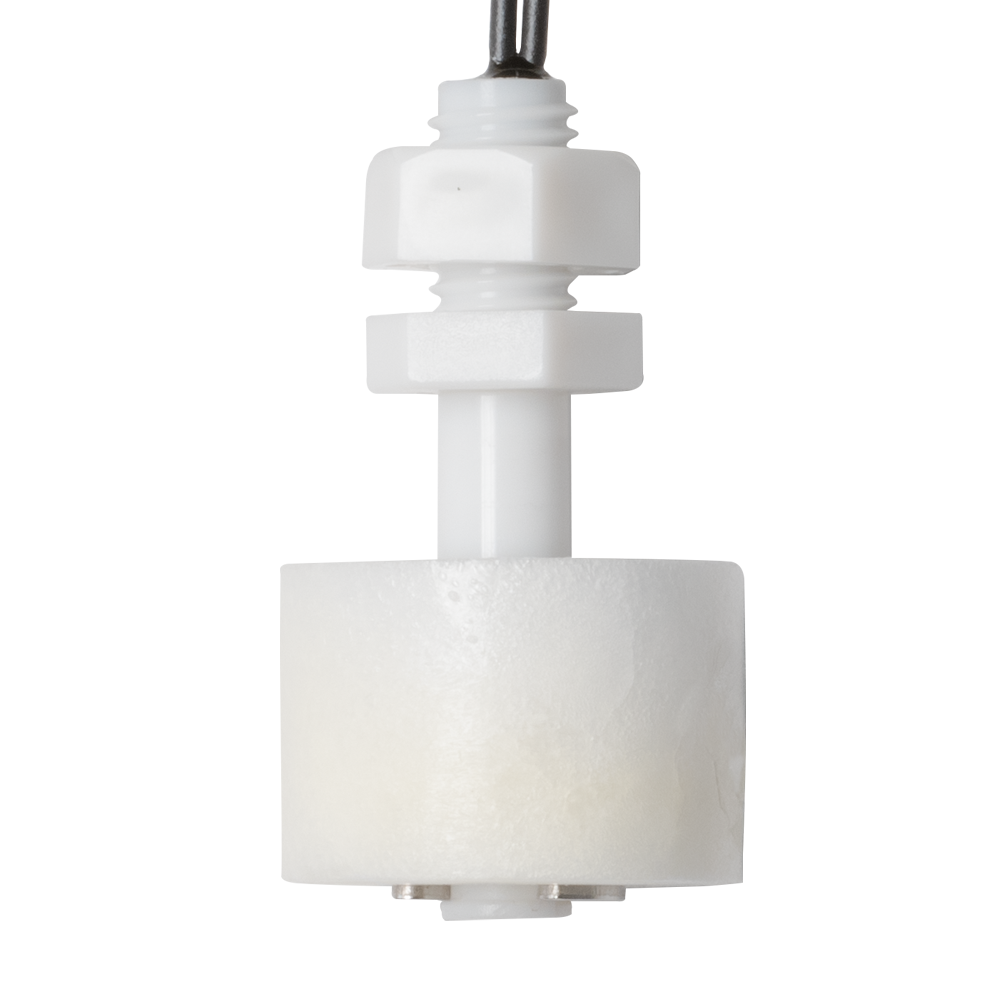

MFS off-the-shelf type / Float level switch MFS25-J
- off-the-shelf type
- Plastic housing
- Vertical threaded
- Small-sized
- For Water
- For Chemical
Vertical through-hole, Normal size, Affordable price, up to 80 deg.
Application
- Humidifiers
Specifications
| Model | MFS25-J | |
|---|---|---|
| Material | Stem | P.P. |
| Float | P.P.Foamed | |
| Stopper | SUS304（P.P.） | |
| Nat | P.P. | |
| Specs. | Temperature Range(Atm.Pressure) | -10℃〜+80℃ |
| Pressure Resistance(Room Temp.) | 0.2MPa | |
| Float Specific Gravity | 0.65±0.05 | |
| Electric Specs. | Max.Contact Capacity | 50W DC/AC |
| Max.Voltage | 300V DC/AC | |
| Max.Current | 0.5A DC/AC |
Explore the “MFS25-J” Level Switch on the following sites by RIKO Float Technology CO., LTD. (RFT):
Dimension
